Description
48VDC 120W, 120/240VAC in, 2 Wire Output

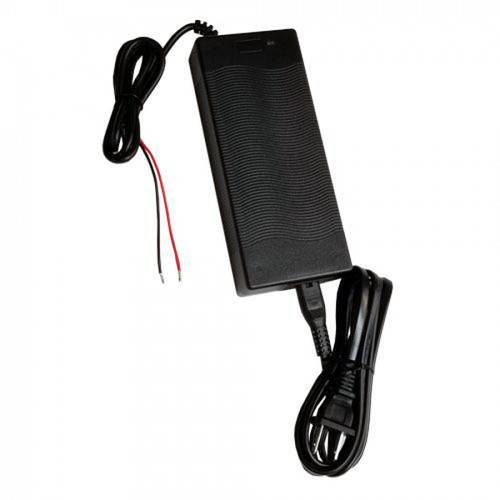

The TP-BC48-120 battery charger provides up to 120W of total charging power. The battery charger is compatible with GEL/AGM type sealed lead acid batteries.
The charger has various protections for short-circuit, over-load, over-voltage, over-current and over-temp. It operates over a wide temperature range.
There is an LED which indicates charging (Red) or battery full (Green). The unit comes with a removeable AC cord with a North American Plug. The units are auto-ranging so they can work from 100VAC to 240VAC.
Features
- 48V 120W Total Power
- Small Form Factor, Low Cost
- Over-Voltage, Over-Current, Over-Temp, OverLoad, Short-Circuit Protections
- Led indicator: Red=Charging, Green=Battery Full
- Wide temperature operation
- CE, UL and FCC Certifications
Applications
- Wireless Base Stations, Cellular Base Stations
- Surveillance Systems
- Battery Backup Systems
| TP-BC12-120 | TP-BC24-120 | TP-BC48-120 | |
| Total Power Available (for Load and Battery charging) | 120W | 120W | 120W |
| Nominal Battery Voltage | 12VDC | 24VDC | 48VDC |
| Battery Charge Max Current | 8.3A | 4.35A | 2.15A |
| Battery Charger Voltage | 14.4V | 28.8V | 57.6V |
| Load Regulation | 5% |
| Line Regulation | 3% |
| Efficiency | 85% Minimum |
| Output Connector | 2 Wire ; 914mm (36”) long cable |
| EMC Standards | FCC Class B , NE55022 Class B |
| Safety Standards | UL60950-1, CSA 22.2, TUV EN60950 |
| AC Power Input (+-10%) | 120VAC / 240VAC , 50/60Hz |
| AC Input Current | 2.5A Max |
| HiPot Test | 3000VAC |
| Insulation Resistance | 50 MOhm, 500VDC |
| Operating Temperature | -30 to +55C (22 to +131°F) |
| Operating Humidity (RH) | Up to 90% (non condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Storage Humidity | Up to 90% (non-condensing) |
| MTBF (Mean Time Between Failure) | >50,000 hrs |
| Dimensions (LxWxH) | 172 x 72.5 x 34.5mm ( 6.8 x 2.9 x 1.4”) |
| Weight | 439g (15.5oz) |
| Warranty | 3 Years |
