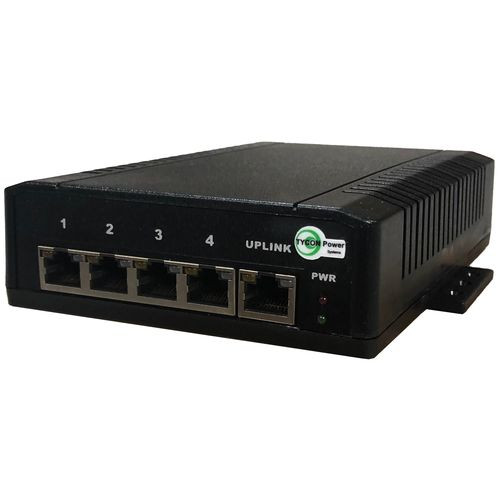

Tycon Systems TP-SW5G-24 PoE Switch,12-36V In,5xPort Gigabit 802.3at

SKU:
TP-SW5G-24
$309.95
UPC:
810017122264
Width:
6.30 (in)
Height:
1.60 (in)
Depth:
4.60 (in)
Shipping:
Calculated at Checkout

Description

5 Port 70W Gigabit 802.3at PoE Switch. 12-36VDC wire term IN. 4 PoE Ports. 1 Uplink

The SW5 Series Power over Ethernet (PoE) switches offered by Tycon Power are fully automatic high speed 5 port Ethernet switches with up to 2A of PoE power per port.

IEEE802.3af/at Compliant 48VDC 10/100/1000MB PoE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC PoE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port. 70W Max Total.

On the universal voltage models (“-NC”) the PoE output voltage = the input voltage so it is universal in its application. The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.

Tycon Power sells a variety of power supplies in 60W, 120W and 180W sizes. 18VDC, 24VDC and 48VDC are available. All the Switches have DIN Rail mounts included for convenient DIN rail mounting

Dimensions: 159 x 116 x 40mm (6.3 x 4.6 x 1.6in)
Weight: 1.2kg (2.7lb)

TP-SW5G-24 Features

  • High Power 10/100 and 1000Mb (“G”) PoE Switch
  • Remotely Power Equipment thru CAT5 Cable up to 100m
  • Up to 2A per Port
  • Built-in Surge Protection
  • Automatic MDI/MDI-X Crossover
  • Automatic Speed and Duplex Sensing
  • Compact Size
  • High Temperature Operation
  • CE and FCC Certification
  • I.T.E. Power Supply, UL Listed

Applications

  • Wireless Access Points and Client Devices
  • IP Phone and Security Camera Systems


Ethernet Standard

IEEE802.3/IEEE802.3u

Ports

1 data/PoE input and 4 data/PoE, automatic crossover and polarity

Transmission Speed

1000Mbps / 100 Mbps /10 Mbps Auto-negotiation

Switch Technology

Store and Forward

Protocol

CSMA/CD

Flow Control

IEEE802.3x(full-duplex), Back Pressure(half-duplex)

Data Transmission Rate

1488000pps for 1000baseT,
148800pps for 100baseT,
14880pps for 10baseT

Address Table

1K MAC, self-learning

Connections

Shielded RJ45

POE Output Ports

Port 1-4, auto power management
Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8)

Maximum POE Power

Up to 35W per port; max 70W Total per switch

POE Auto Detection

IEEE 802.3af, 802.3at

POE Protection

Over Temperature, Over Current, Over/Under Voltage

Data Surge Protection

IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) IEC61000-4-5 (Lightning) 20A (8/20μs)

LED’s

Link (Green On)
Activity (Green Blinking )
PoE Detect (Yellow On)
PoE Detect Error (Yellow Blinking)
Power On (Green On)
Power On Alarm (Red On)

DC Power Input

24VDC (12V to 36V), Dual DC Inputs, Reverse Polarity Protected. Also Accepts PoE power input on Port 5

Self Consumption

< 4 Watts

Operating Temp

-40 to +70°C (-40 to 158°F)

Operating Humidity (RH)

5% - 90% (non condensing)

Storage Temperature

-55 to +85°C (-67 to +185°F)

Dimensions (LxWxH)

159 x 118 x 40mm (6.3 x 4.6 x 1.6”) (HP version has metal housing)

Weight

383g (13.5oz)

Warranty

3 Years
