Tycon Systems RPST1248-200-160 Remote Power System 160W Solar, 12V 200Ah Batt, 48V PoE

No reviews yet Write a Review
SKU:
RPST1248-200-160
$1,599.95
UPC:
810017120826
Shipping:
Calculated at Checkout

Description

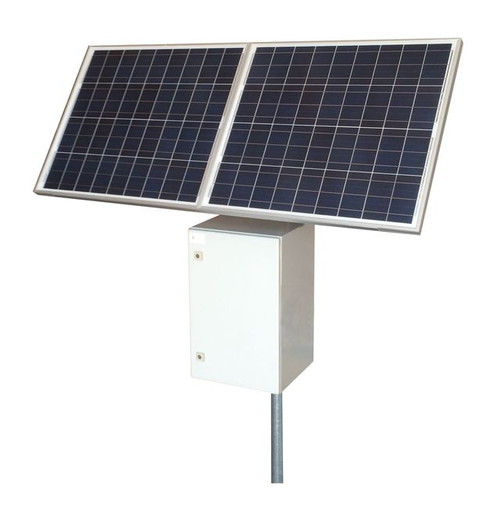

RemotePro 40W Continuous Remote Power System. 160W Solar Panel & Mount. Steel Enclosure. 12V 200Ah Battery. 48V POE Voltage

The RemotePro series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple DIN Rail mount features are provided.

All enclosures are hinged and gasket sealed with tamper resistant locks for security. The enclosures can be mounted to a wall or pole with the included mounting bracket system.

The high quality solar panels have a 25year power output guarantee. The panel come with a side of pole mounting bracket for mounting to a pole or wall.

There are 12V and 24V battery configurations with 24V and 48V PoE outputs up to 30W. There are also systems which feature a 20A output unregulated solar controller for higher output power. Enclosures have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. The enclosures include a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C.

Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.

The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.

Features

  • Complete Remote Power Solution for Off-Grid Operation
  • Weatherproof Outdoor Enclosure with up to 200Ah Battery
  • Enclosures can be Wall or Pole Mounted
  • High Performance Sealed Lead Acid Batteries
  • PWM Charge Controllers
  • Thermostatically Controlled Ventilation

Applications

  • Wireless Base Stations and Clients
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Remote Sensors
  • Remote Lighting
  • Backup Power Systems

Extra Information

Brand:
Tycon Systems
Weight:
270.00 LBS
