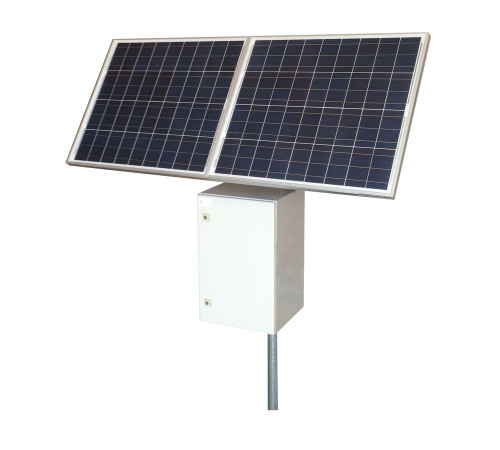

Tycon Systems 25W, 160W Solar Panels, 12/24V 200Ah Off Grid Solar Power System

You save $48.96
53.40 (in)
24.00 (in)
31.00 (in)
$150.00 (Fixed Shipping Cost)


RemotePro, 25W,160W Solar,2400W Battery, MPPT

RemotePro systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.

The systems can be config. as 12VDC/24VDC for greater compatibility. The manageable MPPT solar controller improves system efficiency by about 15% meaning that more solar energy reaches the batteries. It supports up to 20A load control.

All enclosures are hinged and gasket sealed with tamper resistant locks for security. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 40°C.

The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance. The enclosures and solar mount can be mounted to a wall or pole (2-4”) with the included mounting systems.

Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.

The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.


  • Complete Remote Solution for Off-Grid Operation
  • Weatherproof Outdoor Encl. with up to 200Ah Batt
  • Enclosures can be Wall/Pole Mounted
  • High Perform. Sealed Lead Acid Batteries
  • MPPT Charge Controllers
  • Thermostatically Controlled Ventilation


  • Wireless Base Stations
  • Surveillance Cameras
  • Wireless Bridge/Repeaters
  • Off-Grid Power
  • Remote Lighting
  • Backup Power Systems


RPST12/24M-200-160 Specifications
Rated Power Generation 40W
Reserve Time @ Rated Power >30hrs
Load Out (DC) 12 or 24VDC, 20A
12V Battery Capacity (Amp Hrs) 200Ah
Battery Voltage (DC) 12 or 24VDC
Battery Type Maintenance Free Non-Spillable Valve Regulated Sealed Lead Acid AGM
Battery Life 5+years
Solar Controller Type MPPT (Maximum Power Point Tracking), Manageable, Temperature Compensated, 20A Max Solar, 20A Max Load Control, LCD Display of Voltages and Currents, Battery %
Bulk Charge 14.4 / 28.8 VDC
Float Charge 13.8 / 27.6 VDC
Over-discharge protection 11.1 / 22.2 VDC
Over-discharge recovery volts 12.6 / 25.2 VDC
Controller Self Consumption <1W
Enclosure Type Pole/Wall Mount, Powder Coat Steel
Enclosure External Size 24 x 15 x 14" (610 x 381 x 356mm)
Enclosure Internal Size 23 x 14 x 12" (584 x 356 x 305mm)
Internal Mount Features DIN Rail/Flat Plate Mounting Brackets Welded to Door and Sides
Solar Panel Dims (LxW) 53.4” x 31” (1356 x 780mm)
Operating Temperature -30°C to +60°C (-22°F to 140°F)
System Weight (no batteries) 109lb (49kg)
Battery Weight 161 lb (73kg)
Wind Speed Rating 90MPH
Warranty 3 Years

Extra Information

Tycon Systems
53.40 (in)
24.00 (in)
31.00 (in)
294.00 LBS
Solar Power System:
20W Continuous
