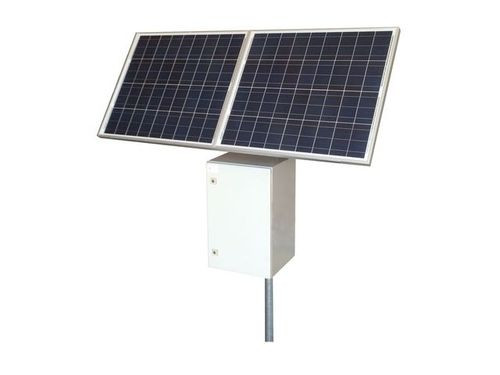

Tycon Systems 160W Solar Panels, 24V 200Ah Battery,48VPoE Off Grid Solar Power System

SKU:
RPST2448-100-160
$1,949.95
UPC:
810017120918
Width:
67.00 (in)
Height:
16.00 (in)
Depth:
26.00 (in)
Shipping:
$300.00 (Fixed Shipping Cost)

Description

RemotePro 40W Continuous Remote Power System,160W Solar Panel & Mount, Steel Enclosure, 24V 100Ah Battery, 48V PoE Voltage

The RPST RemotePro series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple DIN Rail mount features are provided.

All enclosures are hinged and gasket sealed with tamper resistant locks for security. The enclosures can be mounted to a wall or pole with the included mounting bracket system.

The high quality solar panels have a 25year power output guarantee. The panel come with a side of pole mounting bracket for mounting to a pole or wall.

There are 12V and 24V battery configurations with 24V and 48V PoE outputs up to 30W. There are also systems which feature a 20A output unregulated solar controller for higher output power. Enclosures have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. The enclosures include a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C.

Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Mat (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.

The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.

RPST2448-100-160 Features

  • Complete Remote Power Solution for Off-Grid Operation
  • Weatherproof Outdoor Enclosure with up to 200Ah Battery
  • Enclosures can be Wall or Pole Mounted
  • High Performance Sealed Lead Acid Batteries
  • PWM Charge Controllers
  • Thermostatically Controlled Ventilation

Applications

  • Wireless Base Stations and Clients
  • Surveillance Cameras
  • Wireless Bridge and Repeaters
  • Remote Sensors
  • Remote Lighting
  • Backup Power Systems
RPST2448-100-160 Specifications
Rated Power Generation 25 or 40W
Reserve Time @ Rated Power 30hrs
PoE Output Voltage (DC) 30W 24V or 48V
Load Out (DC) 24V 1.5A Regulated
12V Battery Capacity (Amp Hrs) 100 or 200Ah
Battery Voltage (DC) 24V
Battery Type Maintenance Free Non-Spillable Valve Regulated Sealed Lead Acid AGM
Battery Life 5+years
Solar Controller Type PWM (Pulse Width Modulated)
Overcharge Protection 28.6V
Over-discharge protection 22V
Over-discharge recovery volts 24.8V
Controller Self Consumption <0.5W
Enclosure Type Pole/Wall Mount, Powder Coat Steel
Enclosure External Size 24 x 15 x 14" (610 x 381 x 356mm)
Enclosure Internal Size 23 x 14 x 12" (584 x 356 x 305mm)
Internal Mount Features Din Rail Mounts (3)
Solar Panel Dims 67” x 26” (1710 x 666mm)
Operating Temperature -30°C to +60°C (-22°F to 140°F)
System Weight (no batteries) 109lb (49kg)
Battery Weight 161 lb (73kg)
Wind Speed Rating 90MPH
Warranty 3 Years

Extra Information

Brand:
Tycon Systems
Width:
67.00 (in)
Height:
16.00 (in)
Depth:
26.00 (in)
Weight:
198.00 LBS
Solar Power System:
20W Continuous
