Description
AV Switch Status At-a-Glance
Easy-to-read Front-panel LEDs
You know exactly what's going on with your devices. Port activity and status LEDs on the line above the port number. PoE Power LEDs appear below it. You can easily see which ports are connected/active and which are receiving power. The included Powered Device Monitor (PDM) function helps keep your connected devices working. The switch monitors them, and if any fails to respond to or send out network traffic, it will shut off power to the device and then resupply it to try and get it back online
- Front-panel LEDs
- Status/activity LEDs above the port number
- PoE power LEDs below the port number
- PDM function helps get offline devices back online

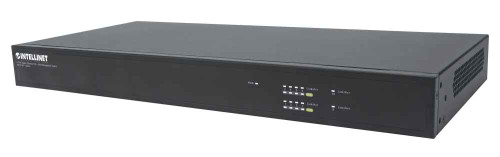

Eight Rear-Facing PoE+ ports, IEEE 802.3at Power over Ethernet (PoE+), Layer2+, Two 1 GbE SFP Open Slots, Endspan, 19" Rackmount
AV Switch Ports
Rear-panel RJ45 ports keep the front of the switch neat and tidy. Average and max power per port is 30 W, creating a 255 W power budget. Two SFP ports offer ways to uplink the switch to another, add fiber connections, or do both. A standard RJ45 to DB9 cable lets you configure the switch via computer.
Console Port
This switch offers a console port so you can configure its settings via computer using an RJ45 to DB9 cable.
Quiet Fan Design
This switch uses perfectly placed ventilation slots and quiet fan to keep the switch cool. Plus, it helps keep the noise level down in your rack, cabinet or IT room.
Power Options
This AV switch includes a detachable three-prong power cord that makes it easy to transport or store the switch. Its on/off switch lets you quickly and easily shut down power to the switch and all devices if you need to.
Features:
- Rear-facing IEEE 802.3at/af-compliant RJ45 PoE/PoE+ Gigabit Ethernet ports
- Provides power and data connection for up to eight PoE network devices
- Domotz compatible for cloud management (may require firmware upgrade)
- 10/100/1000 auto-sensing ports for automatic detection of optimal network speeds
- Two small form-factor pluggable 1 GbE SFP module slots
- Console port for configuring
- Power output up to 30 watts per port*
- PoE power budget of 255 watts
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras, etc.)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- Management by Web/SNMP/Telnet/Console
- All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
- Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
- 20 Gbps switch fabric
- SNMP Management and Remote Monitoring (RMON)
- Remote reboot/restart
- The Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic.
- IPv4/v6 dual protocol
- Supports VLAN (tag-based and port-based)
- Provides IEEE 802.1x port-based security
- Supports link aggregation (trunking)
- Supports bandwidth control per port
- Supports port mirroring
- Supports two types of QoS: port-based and DSCP
- Broadcast storm control with multicast packet-rate settings
- Supports Spanning Tree Protocol (STP) IEEE 802.1d
- Store and forward switching architecture
- IEEE802.3x Flow Control
- Supports jumbo frames up to 10 kBytes
- Supports 8k MAC address entries
- LEDs for power, link/activity and PoE
- Includes 19" rackmount brackets
- Includes console cable
- Three-year warranty
Specifications
Standards
- IEEE 802.1d (Spanning Tree Protocol [STP])
- IEEE 802.1p (Traffic Prioritization)
- IEEE 802.1q (VLAN Tagging)
- IEEE 802.1s (Multiple Spanning Tree Protocol [MSTP])
- IEEE 802.1w (Rapid Spanning Tree Protocol [RSTP])
- IEEE 802.3ad (Link Aggregation)
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
- IEEE 802.3ad (Link Aggregation Control Protocol [LACP])
- IEEE 802.3az (Energy Efficient Ethernet [EEE])
- IEEE 802.3af (Power over Ethernet 802.3at Type 1)
- IEEE 802.3at (Power over Ethernet 802.3at Type 2)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (Flow Control for full duplex mode)
General
- Media support:
- 10Base-T UTP/STP RJ45
- 100Base-TX UTP/STP RJ45
- 1000Base-T UTP/STP RJ45 - MAC address table: 8k
- Backplane speed / switch fabric: 20 Gbps
- Buffer Memory: 4.1 MB
- Forwarding Rate: 14.88 Mpps
- Switch architecture: store and forward
- Configuration options:
- Port link speed: 10 Mbps, 100 Mbps, 1000 Mbps or auto-negotiation
- PoE on/off per port
- Flow Control on/off per port
- VLAN
- Rate limiting (ingress rate and egress rate)
- Port Mirroring, one to one or many to one
- Port Aggregation/LACP: 8 groups
- Broadcast Storm configuration with broadcast rate, multicast rate and flooded unicast rate
- IGMP Snooping
- Access management filtering: SNMP, HTTP, HTTPS, SSH, Telnet
- Quality of Service (QoS): port-based or DSCP
- Link Layer Discovery Protocol (LLDP) - Station and Media Access Control Connectivity Discovery
- LLDP-MED Extension (TIA specific TLVs)
- Integrated ICMP Ping client sends ping requests to other network nodes
- SNMPv1/v2c/v3 (Simple Network Management Protocol)
- RMON
- DHCP: Server/Client
- LAN settings (IP address, Gateway, etc.)
- EEE Energy Efficient Ethernet
- SSHv2 - Certifications: FCC Class B, CE
Power
- Input: 100 – 240 VAC, 50 – 60 Hz
- Power consumption: 270 watts (maximum)
Environmental
- Metal housing
- Dimensions: 200 (L) x 440 (W) x 44 (H) [mm] / 7.87 (L) x 17.32 (W) x 1.73 (H) [in.]
- Weight: 3.2 kg (7.05 lb.)
- Operating temperature: 0 – 40°C (32 – 104°F)
- Operating humidity: 20 – 85% RH, non-condensing
- Storage temperature: -10 – 70°C (14 – 158°F)
Package Contents
- 8-Port Gigabit Ethernet PoE+ Web-Managed AV Switch with 2 SFP Uplinks
- Power cable
- User manual
- 19" rackmount brackets
- Console cable
- Four rubber feet
