Orientek K330 1310/1550nm 32/30dB Mini Handheld OTDR

No reviews yet Write a Review
SKU:
K330
$799.00
Width:
5.11 (in)
Height:
9.84 (in)
Depth:
2.59 (in)
Shipping:
Calculated at Checkout

Description

Optical Fiber Tester

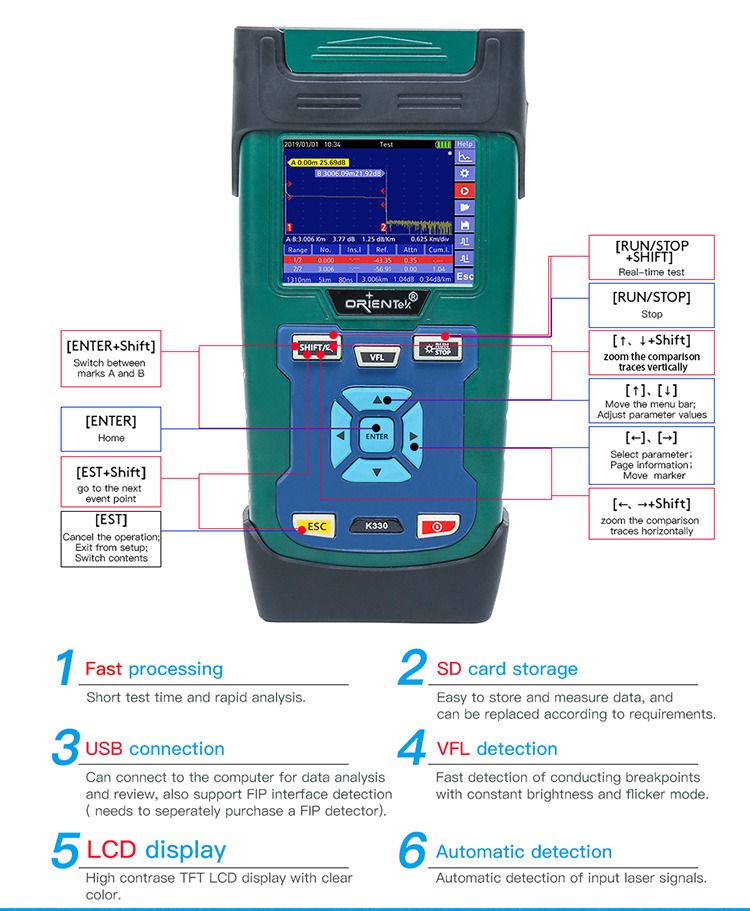

  • Benefits and Features

Invaluable options supporting installation and maintenance works

  • 15 Hours Battery Operation

Imagine working an entire work shift at your remote work site without worrying a . bout running out of battery power. The K330’s powerful Li-Ion battery 4200mah will last for an amazing 18 hours under the Telcordia standard conditions and 10 hours even with the laser continuously turned  on!

  • Fiber Inspection Probe

Taking the time to properly inspect a fiber-optic connector using a Orientek fiber inspection probe can prevent a host of issues from arising further down the line, thus saving you time, money and  trouble.

  • Visible Light Source

 Visible, continuous/modulated red light laser. Invaluable test instrument for checking continuity of  patchcords, launch fibers, or short fiber trunks. Breaks and bendings in fiber can be identified visually as the visible light exits the fiber on such fault events.

  • K330 Emulation Software

Powerful post-processing software. Analyzing/editing trace data on a PC. The Report Creation Wizard function provides a step-by-step guidance for users in generating comprehensive reports in a printable format

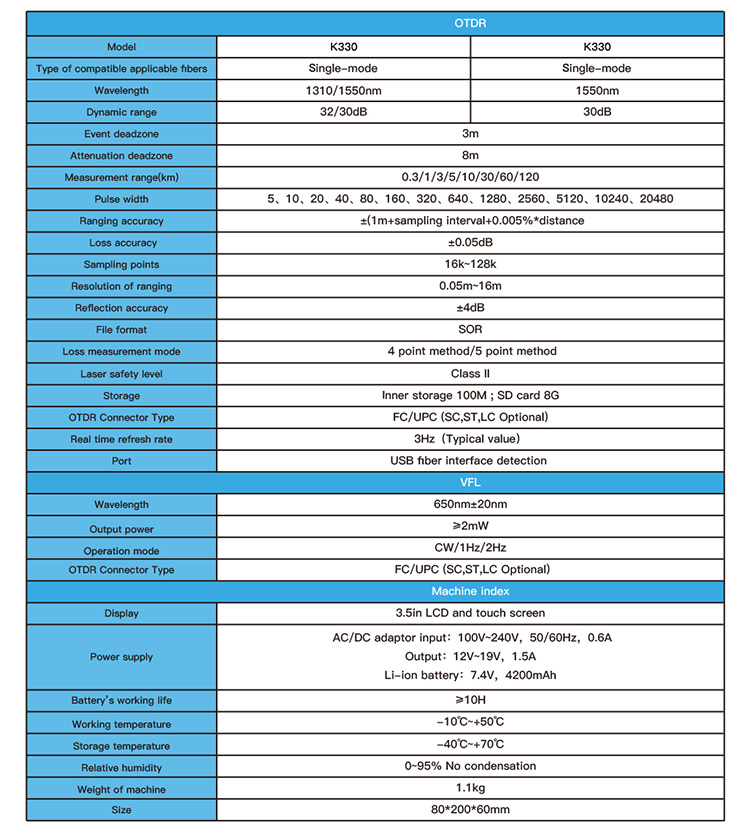

Features:

  • Event deadzone: <3m
  • Attenuation deadzone: <8m
  • Wavelength:1310/1550nm
  • Dynamic range:30/28dB
  • 3.5 inch TFT-LCD (touch screen)
  • Support FIP fiber inteface detection ( optional )
  • Water resistant dust resistant shock resistant drop resistant
  • Read and creat the test report on the computer via OTDR trace manager software
  • Built-in lithium battery with high capacity for over 15 hours of operating life
  • Pulse width(ns):5、10、20、40、80、160、320、640、1280、2560、5120、10240、20480
  • VFL function

Extra Information

Brand:
Orientek
Width:
5.11 (in)
Height:
9.84 (in)
Depth:
2.59 (in)
Weight:
2.00 LBS
