Description
16 Core Fiber Optic Distribution Box - 1X16 InsertUPC

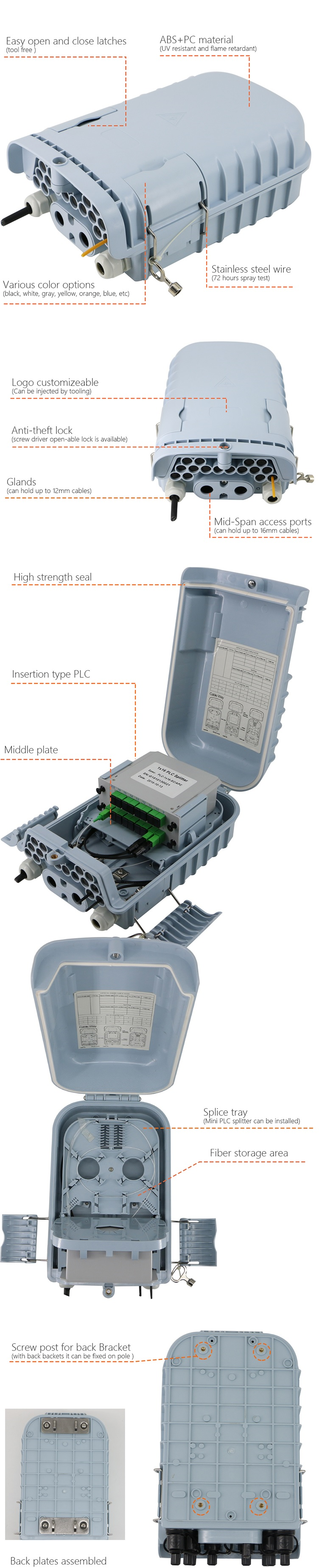

Fiber storage/splicing areas designed
Positive fiber management (30mm min bend radius)
IP65 rating
Secure, with anti-theft locking mechanism
Pole or building facade mounting features
Range of colors
Grounding strap provided
Adaptor version available
Technical Data
|
Dimensions |
287*172*102mm |
|
Number of ports |
1 Min-span inlet port, 16 drop cable ports |
|
Maximum number of splices |
16 |
|
Number of Splice tray |
4 |
|
Suitable connector type |
SC/ LC/FC |
|
Maximum number of adaptors |
16 |
|
Color |
Black/White/Gray |
|
Maximum inlet cable diameter (single port) |
14 mm |
|
IP rating |
IP 65
|
Extra Information
Brand:
OFP
Width:
5.00
(in)
Height:
10.00
(in)
Depth:
2.00
(in)
Weight:
3.00 LBS
